FZ3000 TFmini Lidar Range Finder Sensor

(No reviews yet) Write a Review
0.08 KGS
Calculated at Checkout


RCmall Lidar Range Finder Sensor Single-Point Micro Module for Arduino Pixhawk Cable Benewake TFmini Drone 4.5-6V FZ3000

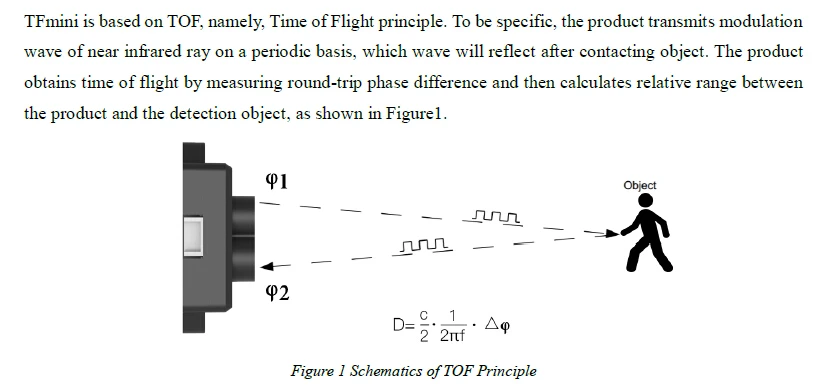

TFmini is a single-point micro ranging module and could be widely used in the integrated application of various drones, UAVs, Robots and industrial equipments. It is based on ToF (Time of Flight) principle and integrated with unique optical and electrical designs, so as to achieve stable, precise, high sensitivity and high-speed distance detection.

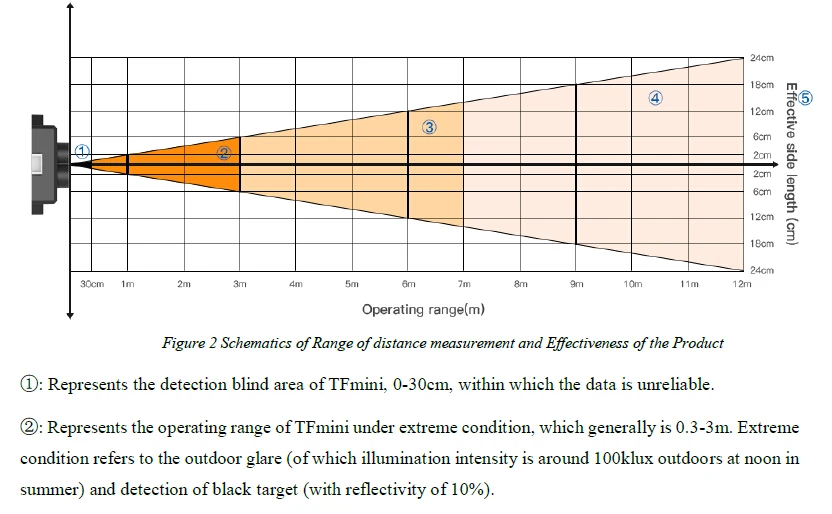

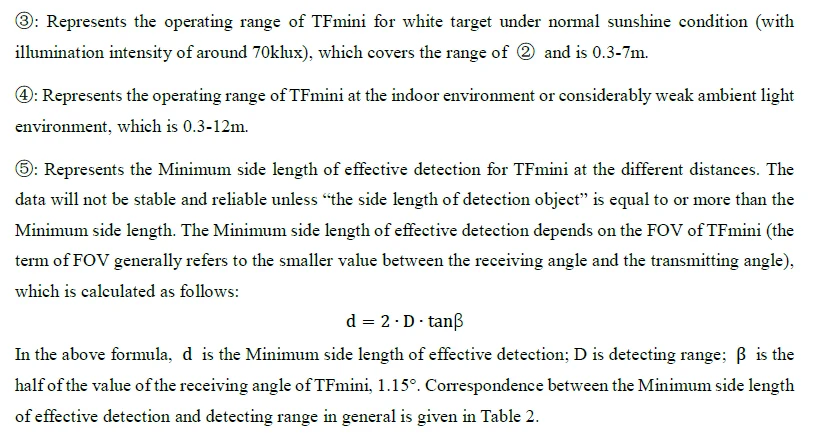

Operating Range : 0.3-12m
Maximum operating range at 10% reflectivity : 5m
Applicable voltage range : 4.5-6V
Average power consumption : 0.12W
Acceptance angle : 2.3°
Communication interface : UART
Electromagnetic Compatibility(EMC):EN 55032 Class B
Baud rate:115200
Data bit:8
Stop bit:1
Parity bit:0
Minimum resolution ratio : 5mm
Frequency : 100Hz
Operating temperature : 20-60C
Light sensitivity : 70,000lux
Accuracy : 1% (less than 6m), 2% (6m-12m)

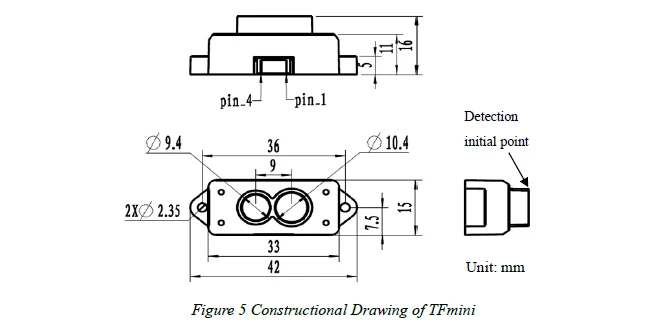

Size : 42mm * 15mm * 16mm
Weight : 6.1g
Main applications:Drone altitude holding and terrain following Machine control and safety sensor Robot distance detection
Package Including:
1 X Lidar Range Finder Module
1 X Cable
112TOF12arduino DuearduIno unoPIXHAWK
