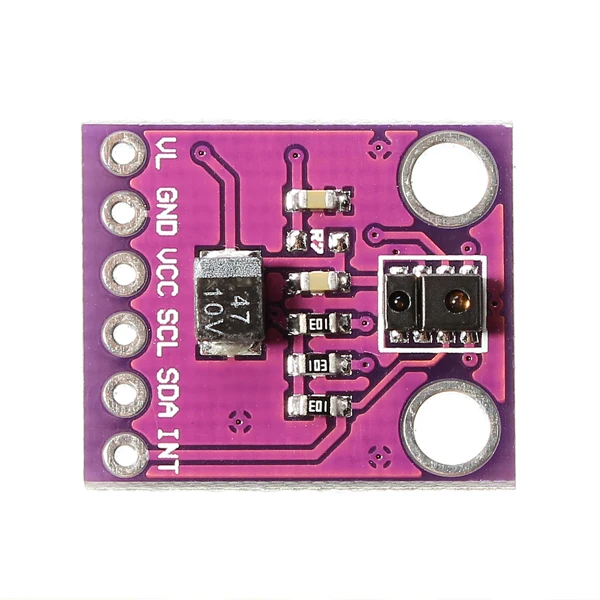

Gesture detection and pose sensor

(No reviews yet) Write a Review
SKU:
PEPNT45
Weight:
0.02 KGS
Shipping:
Calculated at Checkout
  • Gesture detection and pose sensor
  • Gesture detection and pose sensor
KES1,000.00

Description

Features:
• Optical modules integrated with ALS, infrared LEDs and proximity detectors
• Ambient Light Sensing (ALS)
   - Approximate human visual response
   - Programmable interrupt capability with upper and lower thresholds
   - Up to 16-bit resolution
   - High sensitivity operation behind dark glass
   - 0.01lux low lumen performance
• Proximity detection
   - Fully calibrated to 100 mm detection
   - Integrated infrared LED and synchronous LED driver
   - Eliminates factory calibration of the proximity sensor
• Programmable wait timer
   - Wait state power consumption - 90μA typical
   - Programmable range from 2.7 ms to more than 8 seconds
• I2C interface compatible
   - Up to 400kHz (I2C fast mode)
   - Dedicated interrupt pin
• Sleep Mode Power - 2.2μA typical
• Small package 3.94 (L) x 2.36 (W) x 1.35 (H) mm

Applications:

• Adjustable light mobile phone backlight
• Notebook / display security
• ASutomatically enabled hands-free mode
• Automatic menu pop up
• Digital camera eye sensor

Package included:

1 x Gesture Detection Attitude Sensor
