Pixhawk PX4 2.4.8 Kit

(No reviews yet) Write a Review
SKU:
PEPPP85
Weight:
0.49 KGS
Shipping:
Calculated at Checkout
On Sale
  • Pixhawk PX4 2.4.8 Kit
  • Pixhawk PX4 2.4.8 Kit
  • Pixhawk PX4 2.4.8 Kit
  • Pixhawk PX4 2.4.8 Kit
  • Pixhawk PX4 2.4.8 Kit
Now: KES18,000.00
Was: KES23,000.00

Description

Pixhawk PX4 Autopilot PIX 2.4.8 32 Bit Flight Controller
Features:
1. The advanced 32-bit ARM Cortex M4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:

Microprocessor

1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor

Sensor

1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6V ADC input
10. External MICRO USB Interface

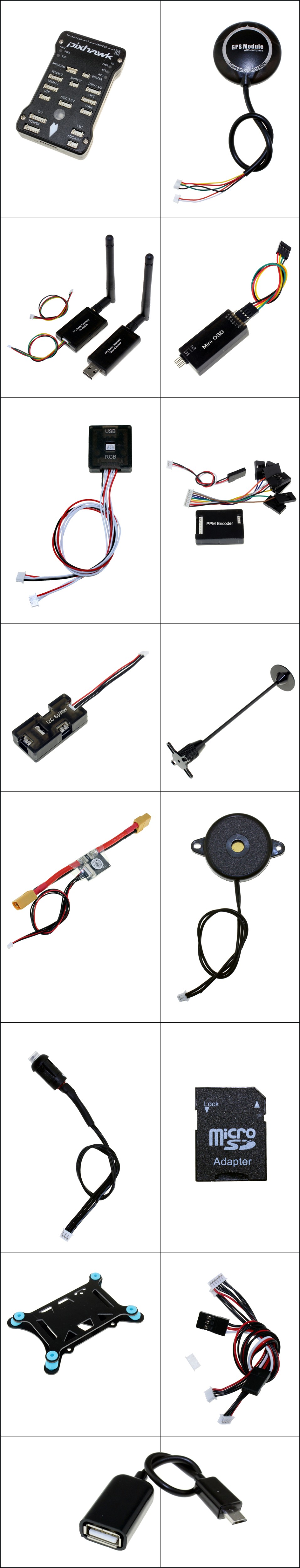

Packing Include:

1 x Pixhawk 2.4.8  32bit ARM Flight Controller
1 x Safety button
1 x Buzzer
1 x 16G TF card(IO firmware has written)
1 x RGB module
1 x Power Module
1 x I2C Splitter Expand Module
1 x M8N GPS with GPS Holder
1 x PPM Module w/ shell
1 x Mini OSD
1 x 433MHZ 3DR Radio Telemetry Kit  With Case    ( Send you as your choice )
Cables

Note:
1.About the 8N GPS, Because of different production batch, there are two kinds of shell, send the shell at random.
