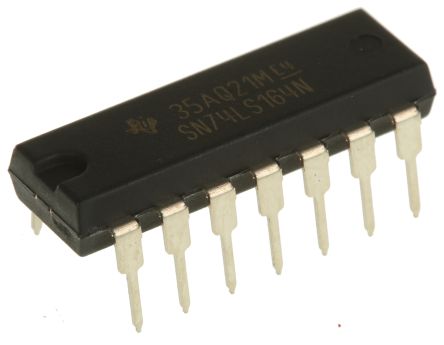

SN74LS164N 8-bit SIPO shift register IC

(No reviews yet) Write a Review
SKU:
PERTY48
Weight:
0.02 KGS
Shipping:
Calculated at Checkout
$0.39

Description

Product Details

74LS Family Counters & Shift Registers

Texas Instruments range of Counters and Shift Registers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.

Specification
AttributeValue
Package Type PDIP
Logic Function Shift Register
Number of Stages 8
Logic Family LS
Mounting Type Through Hole
Operation Mode Serial to Parallel
Number of Elements 1
Pin Count 14
Minimum Operating Supply Voltage 4.75 V
Maximum Operating Supply Voltage 5.25 V
Dimensions 19.3 x 6.35 x 4.57mm
Length 19.3mm
Width 6.35mm
Reset Type Asynchronous
Maximum Operating Temperature +70 °C
Height 4.57mm
Direction Type Uni-Directional
Minimum Operating Temperature 0 °C
Triggering Type Positive Edge

Package Include
1pc x SN74LS164N 8-bit SIPO shift register IC
